Multiple waveguides

Two Waveguides

In the previous examples, we have only considered cases with a single waveguide. In this tutorial, we show how to model a beamsplitter and an optical switch using two waveguides. A beamsplitter or a swap gate can be modeled using the Hamiltonian $H_I = V(w_1^\dagger w_2 + w_2^\dagger w_1)$ where V is some interaction strength that determines which interaction is modeled (we will discuss this in detail later). $w_1$ and $w_2$ are the annihilation operators of the two waveguides. A sketch of the system can be seen here:

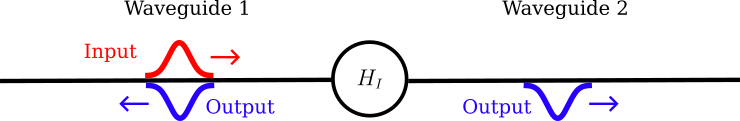

Alt text

We can describe the state of two waveguides with a total of N excitations by adding an argument specifying the number of waveguides as:

times = 0:0.1:10
dt = times[2] - times[1]
NPhotons = 2
NWaveguides = 2
bw = WaveguideBasis(NPhotons,NWaveguides,times)

When creating operators, we now have to specify which waveguide they are acting on (in this case, number one or two). This is done by an extra argument to create and destroy:

wd1 = create(bw,1)
w1 = destroy(bw,1)
wd2 = create(bw,2)
w2 = destroy(bw,2)

Similarly, initializing one or two-photon states in the first or second waveguide is done by:

ξ(t,σ,t0) = sqrt(2/σ)* (log(2)/pi)^(1/4)*exp(-2*log(2)*(t-t0)^2/σ^2)
ξ2(t1,t2,σ,t0) = ξ(t1,σ,t0)*ξ(t2,σ,t0)
ψ_single_1 = onephoton(bw,1,ξ,2,5)
ψ_double_1 = twophoton(bw,1,ξ2,2,5)
ψ_single_2 = onephoton(bw,2,ξ,2,5)
ψ_double_2 = twophoton(bw,2,ξ2,2,5)

If we want to describe a simultaneous excitation in both waveguides (states like $\ket{1_i}_\mathrm{1}\ket{1_j }_\mathrm{2}$ where the subscript $\ket{1i}\mathrm{i}$ means waveguide i) we specify both indices of the waveguides:

ψ_single_1_and_2 = twophoton(bw,[1,2],ξ2,2,5)

Beamsplitter

Let's now treat the same example as in Interference on Beamsplitter. We consider the two waveguides in an identic single-photon state and thus use the above defined ψ_single_1_and_2. The Hamiltonian governing a beamsplitter in the time-binned formalism has $V= \pi/4$:

V = pi/4
H = im*V/dt*(wd2*w1 - wd1*w2)

We can then evolve the system under this Hamiltonian to perform the beam-splitting operation:

psi_out = waveguide_evolution(times,ψ_single_1_and_2,H)

We can then view the final state to verify that we only have two photons in the same waveguide simultaneously:

julia> psi_second = TwoPhotonView(psi_out,2);
julia> psi_first = TwoPhotonView(psi_out,1);
julia> psi_first_second = TwoPhotonView(psi_out,[1,2]);
julia> norm(psi_second)^20.4999999973078307
julia> norm(psi_first)^20.4999999973078307
julia> norm(psi_first_second)^23.0005024734988287e-29

Except for numerical errors, we have 50% chance of observing both photons in the same waveguide and 0 (8.736388404016349e-9)% of observing both photons in each of the waveguides simultaneously.

Similarly, we can plot the scattering/splitting of a single photon arriving in the left arm.

Alt text

Swap

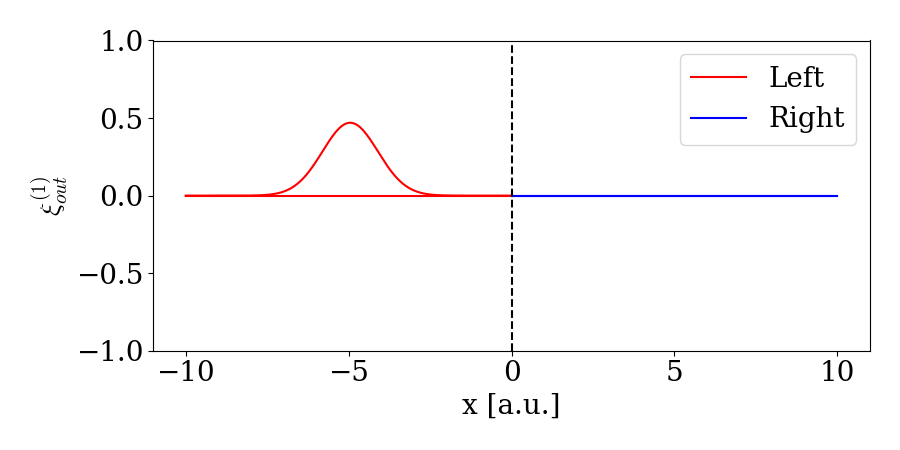

If we instead choose $V = \pi / 2$, we get the SWAP operation. Let us consider one photon in the first waveguide and swap it to the second waveguide and animate the evolution:

V = pi/2
H = im*V/dt*(wd2*w1 - wd1*w2)
psi_out_swap = waveguide_evolution(times,ψ_single_1,H)
first_after = OnePhotonView(psi_out_swap,1)
second_after = OnePhotonView(psi_out_swap,2)

"Alt text"

WaveguideBasis(2,2,times) vs. Waveguide $\otimes$ Waveguide

Instead of using the custom basis for handling two waveguides, one could instead just do a tensor product between two waveguides basis. This naive approach would look something like:

julia> times = 0:0.1:100.0:0.1:10.0
julia> bw = WaveguideBasis(2,times)WaveguideBasis{2, 1}([5253], 5252, 0, 101, 0.1, [101])
julia> Btotal = bw ⊗ bw[WaveguideBasis{2, 1}([5253], 5252, 0, 101, 0.1, [101]) ⊗ WaveguideBasis{2, 1}([5253], 5252, 0, 101, 0.1, [101])]

This might work if you only consider single-photon excitations in the waveguides, but if you go consider two-photon excitations (as in the above) the Hilbert space blows up. Indeed, in the above example, the Hilbert space is of size: 27.594.009!!! However, since we often know that the system in total only has two excitations, there is no possibility of having two photons in both waveguides simultaneously (states of type: $\ket{1_k,1_j}_{1}\ket{1_l,1_m}_{2}$). This part of the Hilbert space takes up the majority since it scales as $\propto N^4$ where N is the number of time-bins. Instead, we can exploit that only a total of two excitations is present simultaneously in the system. For this, we use the custom basis WaveguideBasis with an additional input stating the number of waveguides:

julia> bw = WaveguideBasis(2,2,times)WaveguideBasis{2, 2}([20706], 20705, 0, 101, 0.1, [101, 101])

The Hilbert space is now of size: 20706. This is still a large Hilbert space, but it is three orders of magnitude smaller than the naive approach as it only scales as $\propto N^2$.
