Quantum Vortices

In this example, we will implement the Gross–Pitaevskii equation to find the vortex solution for a 2D Bose-Einstein condensate trapped in a harmonic potential. The time-independent Gross–Pitaevskii equation is

$i \hbar \frac{\partial \Psi (\mathbf{r},t)}{\partial t} = \left(-\frac{\hbar^2}{2m} \nabla^2 + V(\mathbf{r}) + g |\Psi (\mathbf{r},t)|^2 \right) \Psi (\mathbf{r},t)$,

where $\Psi (\mathbf{r},t)$ is the condensate wavefunction, $V(\mathbf{r})$ is an external potential, and $g$ describes interactions between particles.

In order to generate vortices, we have to add a rotational term to the effective Hamiltonian

$\Omega \left( x p_y - y p_x \right)$,

where $\Omega$ is the angular velocity, and find the groundstate of the system. This part is tricky because the Hamiltonian depends on the wavefunction so we cannot simply diagonalize it. However, we can use some alternative methods such as imaginary time evolution which simply damps out all the excited states from an arbitrary initial state leaving us with the groundstate only. Numerical generation of vortices is quite challenging so we will use a couple of tricks in this code to help them to emerge. We proceed as usual by loading the needed libraries, defining the parameters and the Hilbert space and the operators of the system.

using QuantumOpticsusing PyPlot

The first trick we will use is the introduction of a slight asymetry to the harmonic trap

ωx = 1; # harmonic potential frequency xωy = (1 + 10^-3); # harmonic potential frequency y, 10^-3 introduces a slight asymetrym = 1; # mass of an atomΩ = 0.6; # angular velocityr = 5 # size of the space# position Basisnx=64; bx = PositionBasis(-r, r, nx); # position basis size nxny=64; by = PositionBasis(-r, r, ny); # position basis size nx# momentum Basisbpx = MomentumBasis(bx);bpy = MomentumBasis(by);# position operators in position spacex  =   position(bx)⊗one(by); # position operatory  =   one(bx)⊗position(by); # position operator# momentum operators in momentum spacePx = momentum(bpx) ⊗ one(bpy) Py = one(bpx) ⊗ momentum(bpy)

To speed up the calculations a little bit, we will also use the split-step method

# composite basescompbx = bx ⊗ bycompbp = bpx ⊗ bpy# FFTTxp = transform(compbx, compbp)Tpx = transform(compbp, compbx) #kinetic EnergyHkin = Px^2/2m + Py^2/2m # kinetic energy in momentum spaceHkin_FFT = LazyProduct(Txp, Hkin, Tpx) # lazy tensor for the split-step method# rotation# lazy prodycts for the split-step methodHrot_1 = -1*LazyProduct(x,Txp,Py,Tpx)Hrot_2 = 1*LazyProduct(y,Txp,Px,Tpx)# harmonic potentialHhar = 0.5*(ωx^2*x^2+ωy^2*y^2)

Finally, we can prepare initial state and damp all the excited states. The closer we are to the ground state the faster we get to the actual ground state.

#initial statep1 = 0p2 = 0σx = 3σy = 3ϕin = gaussianstate(bx, 0, p1, σx)⊗gaussianstate(by, 0, p2, σy)normalize!(ϕin)

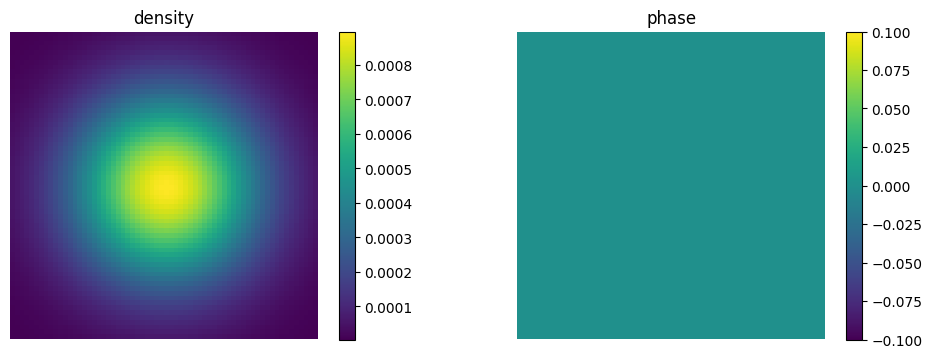

Let's see how the initial state looks like:

density = Array(transpose(reshape((abs2.(ϕin.data)), (nx, ny))));phase = Array(transpose(reshape((angle.(ϕin.data)), (nx, ny))));figure(figsize=(12, 4))subplot(1,2,1)title("density")imshow(density)colorbar()axis("off")subplot(1,2,2)title("phase")imshow(phase)colorbar()axis("off")

It is also a good idea to prepare a phase mask for the initial state. We will want to get two vortices so the phase has to jump twice.

mask = Array{Complex{Float64}}(undef, 0)j = 2 # number of vorticesfor x = 1:nx    for y = 1:ny        push!(mask,exp(j*1im*atan(x-nx/2,y-ny/2))/2)    endendnewstate = (abs.(ϕin.data)).*maskϕin = Ket(compbx,newstate)

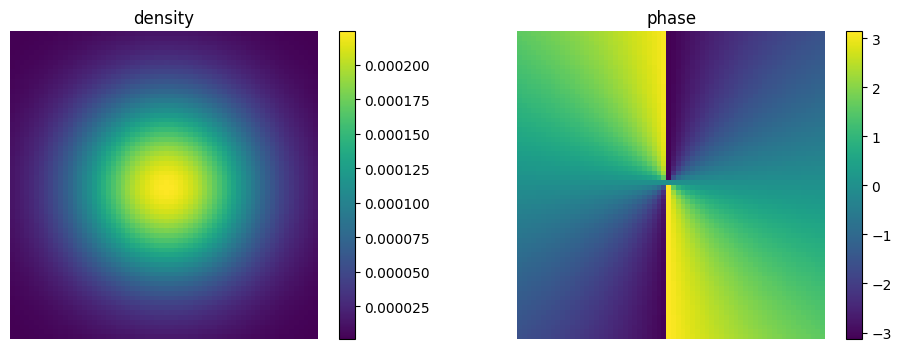

And see once again the initial state

density = Array(transpose(reshape((abs2.(ϕin.data)), (nx, ny))));phase = Array(transpose(reshape((angle.(ϕin.data)), (nx, ny))));figure(figsize=(12, 4))subplot(1,2,1)title("density")imshow(density)colorbar()axis("off")subplot(1,2,2)title("phase")imshow(phase)colorbar()axis("off")

We are now very close to the ground state. Let's kill the contributions from the excited states and get finally nice vortices. Another tricky thing that we have to take into account is the normalization of the wavefunction. In the imaginary time evolution the wavefunction amplitude decreases from step to step. We will normalize the wavefunction after every step.

# GPE dx = 2r/nxg = 100. # interaction strengthHg = diagonaloperator(bx, Ket(bx).data)⊗diagonaloperator(by, Ket(by).data) # ∝ |ψ|^2H_tot = -1im*LazySum(Hkin_FFT, Hg, Ω*Hrot_1, Ω*Hrot_2, Hhar) # imaginary time evolution function Hgp(t, ψ) # Update state-dependent term in H    normalize!(ψ) # <- the wavefunction will be always normalized to 1    H_tot.operators[2].data.nzval .= g*abs2.(ψ.data)/(dx^2) # we need to update the second term in the Hamiltonian    return H_totend# groundstate  # imaginary time evolutionT = [0:0.42:4;]tout, ψt = timeevolution.schroedinger_dynamic(T, ϕin, Hgp)# this should be the ground stateϕ = ψt[end]

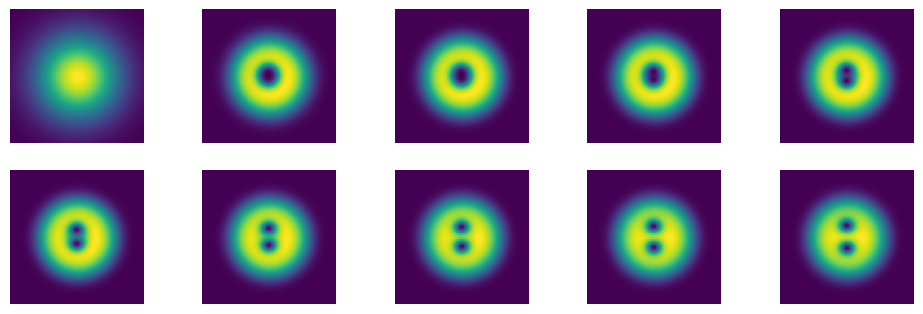

Let's also see how the vortices emerged from our intial state

density = [Array(transpose(reshape((abs2.(ψ.data)), (nx, ny)))) for ψ=ψt ];figure(figsize=(12, 8))for i = 1:length(ψt)    subplot(4,5,i)    imshow(density[i])    axis("off");end

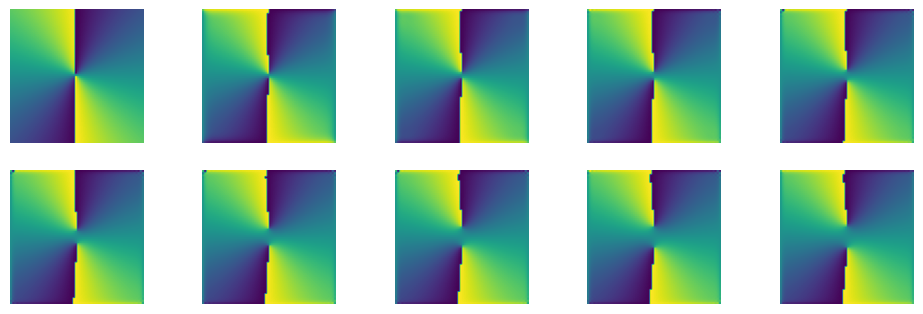

And also the phase which should not change too much

phase = [Array(transpose(reshape((angle.(ψ.data)), (nx, ny)))) for ψ=ψt ];figure(figsize=(12, 8))for i = 1:length(ψt)    subplot(4,5,i)    imshow(phase[i])    axis("off");end
